Please contact us for a Marine Rail System quote.

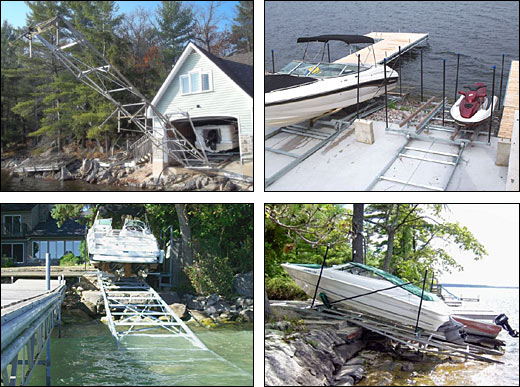

Naylor railways are suitable for a wide variety of boating enthusiasts. These railways can accommodate aluminum fishing boats right up to cabin cruisers weighing 10,000 lbs or more.
|
MARINE RAILWAY MODELS
|
| Model |
Capacity
(in lbs.) |
Max. Beam |
Width Overall |
Support Type |
Track Width |
Recommended Winch |
| MR15 |
1,500 |
7'6" |
8' |
Aluminum long bunk with full-length cushion padding |
43" |
1,800 hand
1/2 HP electric |
| MR40 |
4,000 |
8'6" |
9' |
Aluminum long bunk with full-length cushion padding |
55-1/2" |
2,000 hand
3/4 or 1HP electric |
| MR60 |
6,000 |
9'6" |
10' |
Aluminum long bunk with full-length cushion padding |
67-1/2" |
3,500 hand
1-1/2 HP electric |
| MR80 |
8,000 |
10' |
10'6" |
Adjustable steel
c/w wood & carpet |
67-1/2" |
3,500 hand
1-1/2 HP electric |
| MR100 |
10,000 |
10'6" |
11' |
Adjustable steel
c/w wood & carpet |
78-1/2" |
2 HP electric |
| MR120 |
12,000 |
11' |
11'6" |
Adjustable steel
c/w wood & carpet |
78-1/2" |
2 HP electric |
|
RAILWAY ACCESSORIES
|
| Description |
Image |
Hand Winch (with brake)
1,800B-2,000B - 2,500B-3,500B |
 |
Electric Winch
1/2 HP-3/4 HP -1 HP -1-1/2 HP-2 HP |
 |
| Adjustable Railway Support |
 |
| 20' Reinforced Track |
 |
| Steel Cable |
|
WARNING: Dry boat weights are often understated by manufacturers and do not include gas, gear, etc.
We recommend dry boat weight plus 20% for fully loaded weight. Warranty is void if the lift capacity is exceeded. Site inspections available, call for details.
Please contact us for a Marine Rail System quote.
|
