Please contact us for a
Drum Storage quote.

Store hazardous drums safely outdoors with pumps and funnels in place!

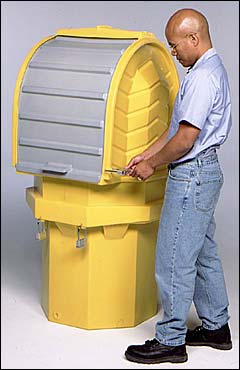

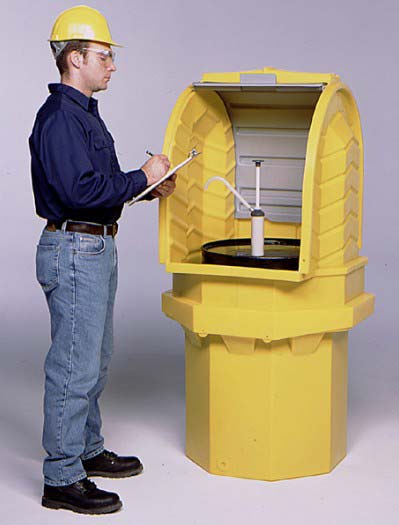

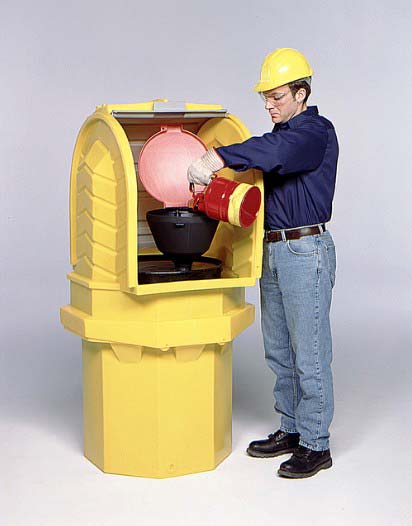

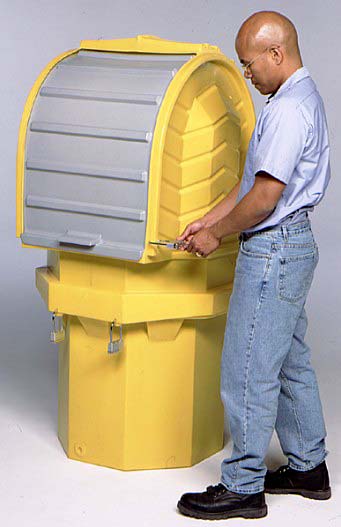

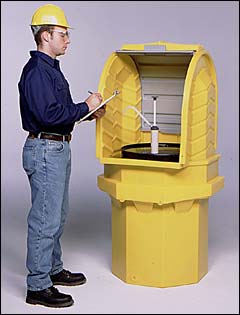

Ultra-Hard Top P1 Plus Spill Pallet
The only 1-drum, lockable outdoor containment unit available.

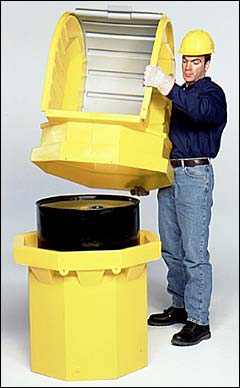

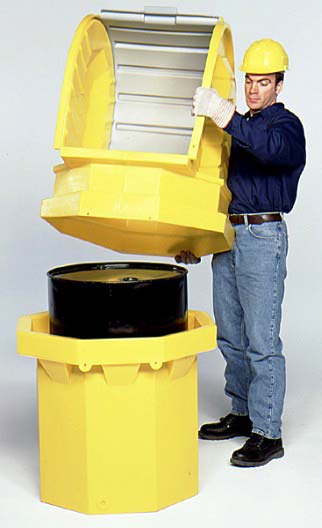

This two-piece spill containment unit provides safe and secure outdoor storage for your 55-gallon drum. Simply use your forklift and/or drum handling equipment to lift and lower the drum into the bottom sump, then place the top portion over the drum where it locks in place onto the lower sump portion. Once assembled with the drum in place, access is quick and easy via the roll top door. The top Hard Top section does not need to be removed again unless the drum needs to be replaced.

  • Convenient "roll top" cover slides up and out of the way—allows quick access to drum pumps and funnels.
  • 100% polyethylene construction will not rust or corrode.
  • Safe Handling - can be moved by forklift under the "shoulder" area or wheeled with the optional dolly.
  • Meets SPCC and EPA Container Storage Regulation 40 CFR 264.175.
  • Tall head space (25 3/4") allows use with drum pumps and conical funnels.
  • Lightweight, yet rugged upper body is easily removed to load or unload drums.
  • Lockable design provides added security for storage of hazardous materials.
  • Optional dolly offers safe and efficient material handling.
  • Dimensions:
    36" x 36" x 66"
    (915 mm x 915 mm x 1677 mm)
  • Containment Capacity:
    70 gallons (265 L)
  • Weight:
    Top 36 lbs. (17 kg)
    Bottom 26 lbs. (12 kg)
  • Uniformly Distributed Load:
    800 lbs. (363 kg)
  • Part# 9640 - 1-Drum Hard Top Spill Pallet, no drain
    Part# 9641 - 1-Drum Hard Top Spill Pallet, with drain
Optional Dolly - Part# 0417
  • Dimensions:
    26 1/2" x 26 1/2" x 5"
    (674 mm x 674 mm x 127 mm)
  • Weight: 35 lbs. (16 kg)
  • Load Capacity: 800 lbs. (363 kg)
  • Construction: Steel

Ultra-Hard Top P1 Plus Spill Pallet
Ultra-Hard Top P1 Plus Spill Pallet
Ultra-Hard Top P1 Plus Spill Pallet
Ultra-Hard Top P1 Plus Spill Pallet
Click photos to enlarge.

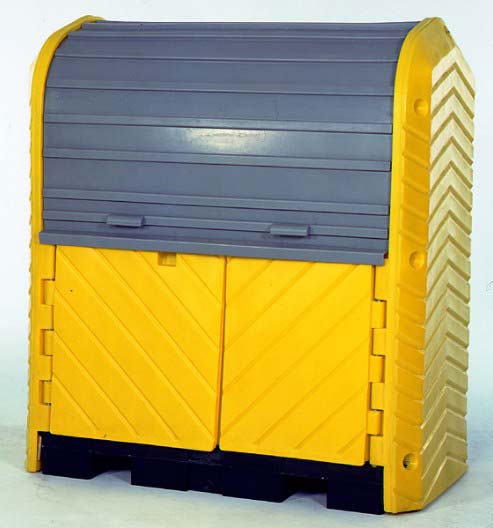

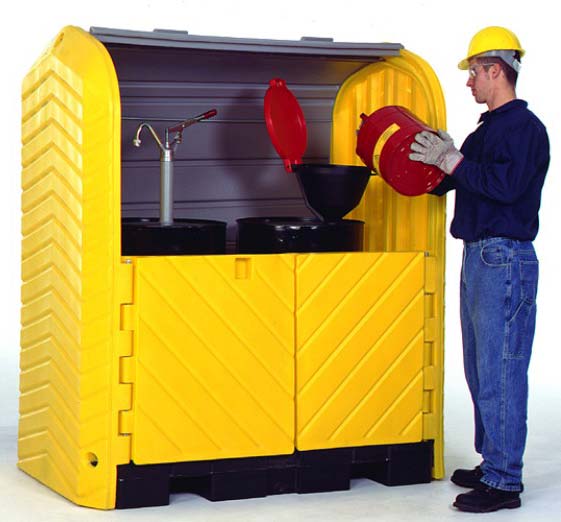

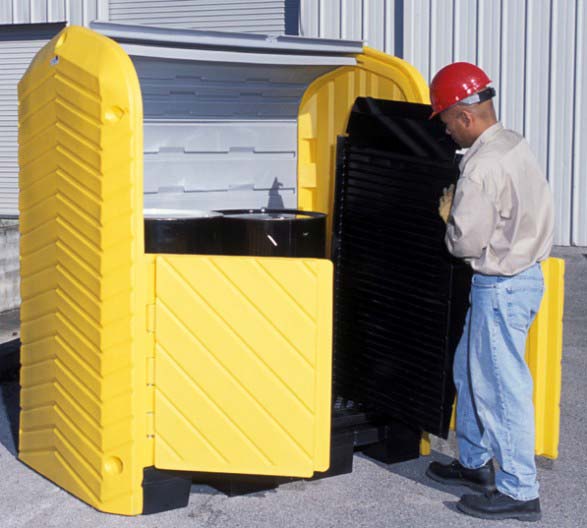

Ultra-Hard Top P2 Plus
The Ultra-Hard Top Plus Spill Pallet provides a safe, convenient and effective place to store (1) or (2) 55-gallon drums. The roll-top doors above and swing out doors below provide complete and easy access to the inside spill containment area. Simply place your drums inside of the unit with your drum handling equipment or with our optional ramp. Close the doors and you are done. Your drums are protected from the elements and unauthorized access (the unit can be locked) and your property is protected from spills or leaks.

  • Tall 23 3/4" head space easily accommodates rotary drum pumps and large conical funnels.
  • Low profile (8 3/4") containment pallet positions drum-top funnels at a safe, convenient level to pour hazardous wastes.
  • Meets SPCC, EPA Container Storage Regulation 40 CFR 264.175 and Uniform Fire Code Spill Containment Regulations.
  • 100% Polyethylene construction will not rust or corrode.

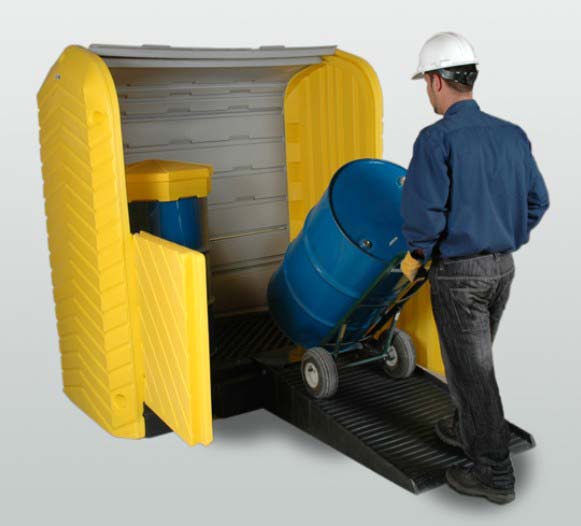

  • "Swing out" lower doors provide full access to drums for loading and unloading - optional ramp features non-slip surface.
  • Compact loading ramp stores neatly inside when not in use - even when loaded with two 55-gallon drums.
  • Simply lift from waist-level to raise the roll-top cover - no need to bend over and reach near ground level as required by alternative products.
  • Ultra-Hard Top P2 Plus Spill Pallet is lockable with a standard padlock, and can be safely lifted by forklift with drums in place.
  • Dimensions:
    67 1/4" x 41 1/4" x 74"
    (1708 mm x 1047 mm x 1880 mm)
  • Containment Capacity:
    66 gallons (250 L)
  • Weight:
    260 lbs. (118 kg)
  • Uniformly Distributed Load:
    4,500 lbs. (2041 kg)
  • Part# 9612 - 2-Drum Hard Top Spill Pallet, no drain
    Part# 9613 - 2-Drum Hard Top Spill Pallet, with drain
Loading Ramp - Part# 0676
  • Dimensions:
    55 1/2" x 28 1/2" x 8 3/4"
    (1410 mm x 724 mm x 222 mm)
  • Weight: 43 lbs. (19.5 kg)
  • Surface: Non-slip
  • Weight Capacity: 700 lbs. (317.5 kg)
  • Construction: Polyethylene

Ultra-Hard Top P2 Plus
Ultra-Hard Top P2 Plus
Ultra-Hard Top P2 Plus
Ultra-Hard Top P2 Plus
Click photos to enlarge.

Please contact us for a Drum Storage quote.
