HOOP PILE HOLDERS IN BC AND ALBERTA CANADA

Please contact us for a Hoop Pile Holders quote.


Hoop, Deck Plate,
and Roller, Complete
Our convertible Hoop Pile Holders have 3 basic pieces, a dock bracket, a hoop and a roller assembly. This allows you to have a hoop pile holder the way you want it, whether it be a permanent hoop, a removable hoop or a hoop with a roller. All hoops are 1½" schedule 40 pipe. The dock brackets are 4" x 6"x ¼" angle. The roller assembly features a 6" solid rubber roller and can be bolted to the deck plate or directly to the dock. All parts are hot dipped galvanized.

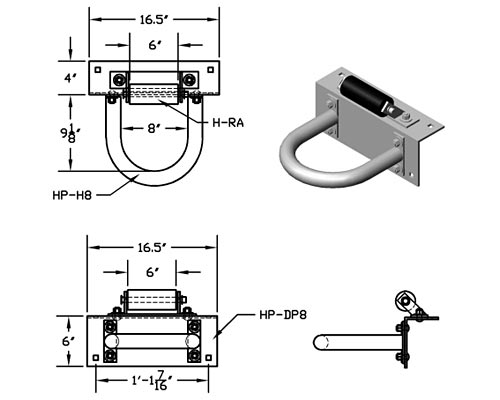

 HP-H8  8" Hoop
 HP-DP8  Deck Plate
 H-RA  Roller Assembly
 HP-H8R  Assembly Complete

Click here for enlarged picture

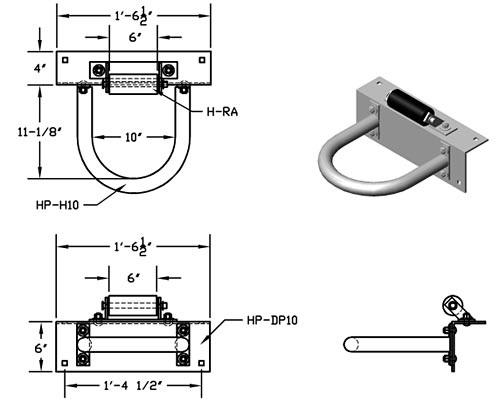

 HP-H10  10" Hoop
 HP-DP10  Deck Plate
 H-RA  Roller Assembly
 HP-H10R  Assembly Complete

Click here for enlarged picture

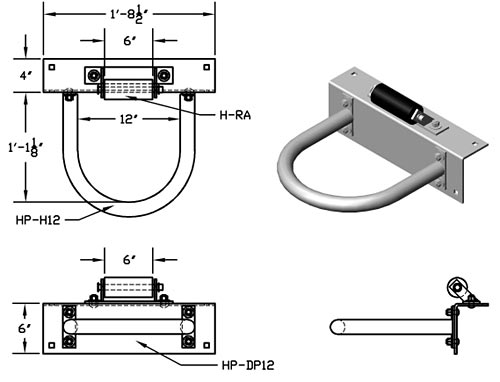

 HP-H12  12" Hoop
 HP-DP12  Deck Plate
 H-RA  Roller Assembly
 HP-H12R  Assembly Complete

Click here for enlarged picture

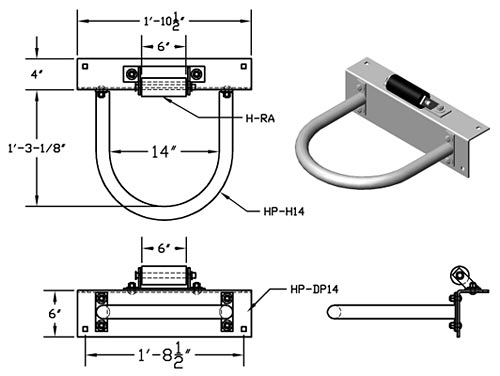

 HP-H14  14" Hoop
 HP-DP14  Deck Plate
 H-RA  Roller Assembly
 HP-H14R  Assembly Complete

Click here for enlarged picture

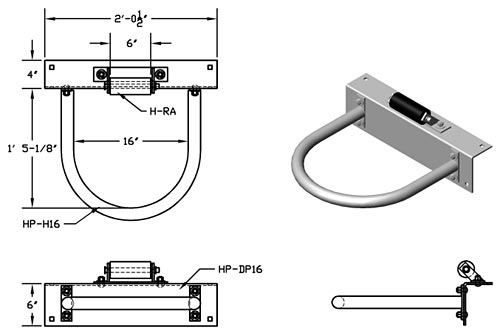

 HP-H16  16" Hoop
 HP-DP16  Deck Plate
 H-RA  Roller Assembly
 HP-H16R  Assembly Complete

Click here for enlarged picture

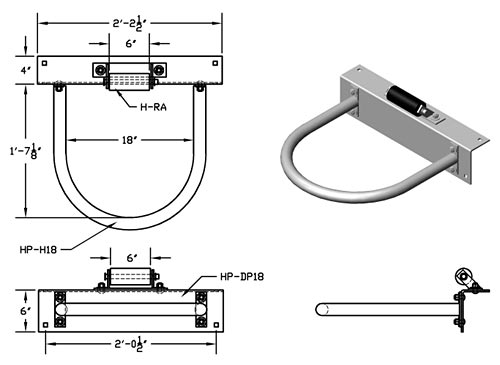

 HP-H18  18" Hoop
 HP-DP18  Deck Plate
 H-RA  Roller Assembly
 HP-H18R  Assembly Complete

Click here for enlarged picture


Roller Assembly
WH-RA - Roller Assembly


REMOVABLE HOOP ASSEMBLIES


Removable Hoops allow you to detach the Pile Hoop from the Deck Plate and your dock in one easy step. Simply remove the two pins and then your dock can be pulled in for winter, etc. The hoops are made with 1 1/2" Schedule 40 Pipe and fit into 2" Pipe Receivers with Hitch Pin. Deck Plates are made from 1/4" High-Strength Steel then hot-dipped galvanized. Roller Assembly is included.

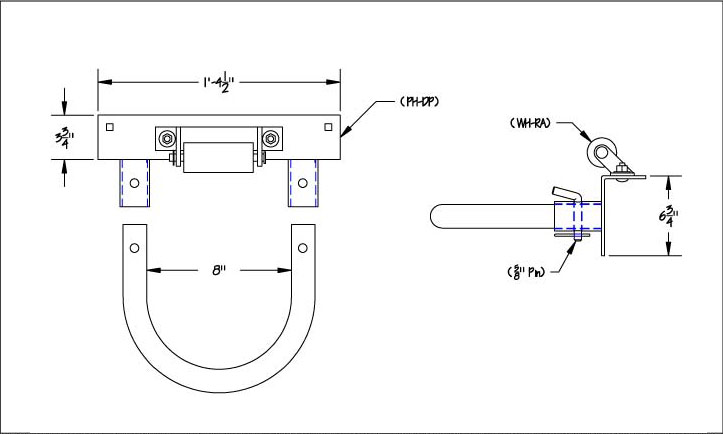

PH-8RHA

Click here for enlarged picture

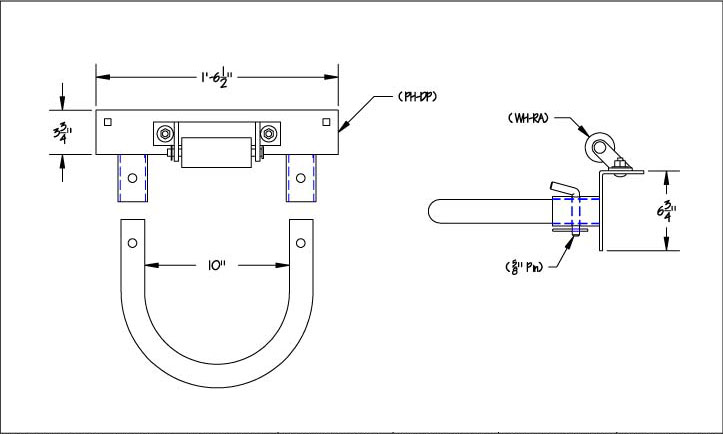

PH-10RHA

Click here for enlarged picture

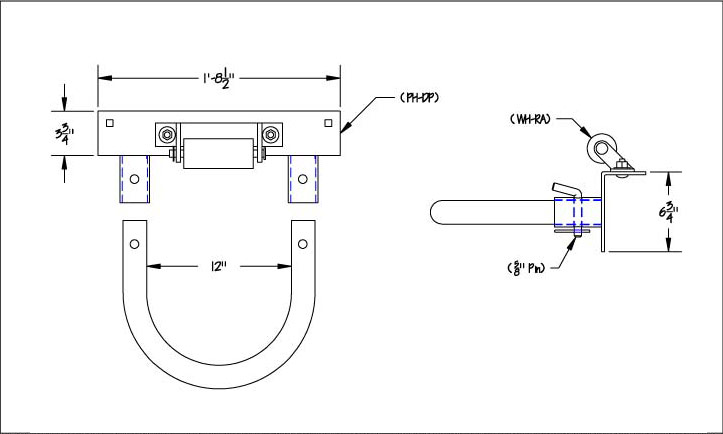

PH-12RHA

Click here for enlarged picture

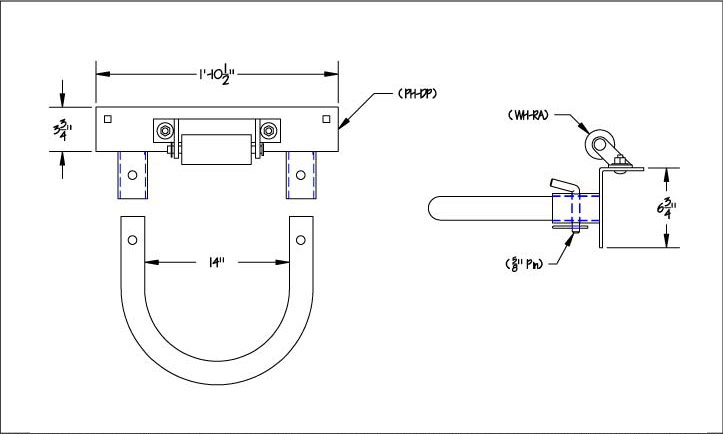

PH-14RHA

Click here for enlarged picture


PH-16RHA

Click here for enlarged picture

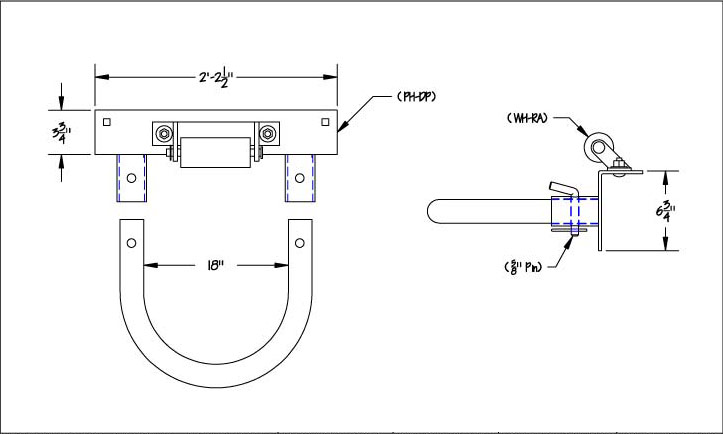

PH-18RHA

Click here for enlarged picture



Please contact us for a Hoop Pile Holders quote.
