Please contact us for a Nautilus™ Pipe Float quote.

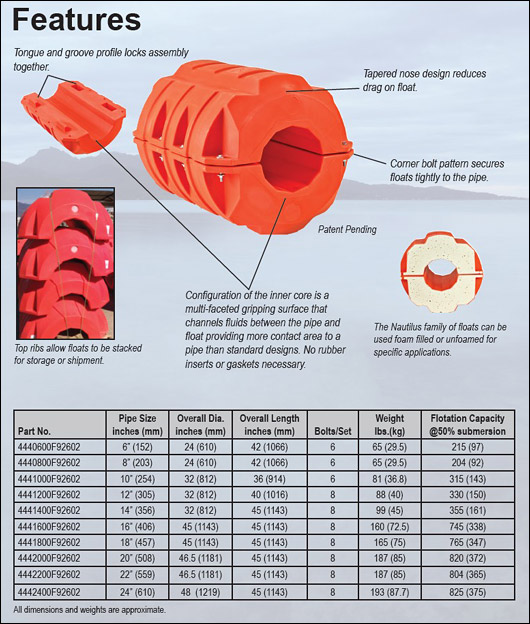

GripTite™ technology for Pipe, Hose or Cable (Patent Pending)
Configuration of the inner core is a multi-faceted gripping surface that channels fluids between the pipe and float providing more contact area to a pipe that standard designs.
- Tapered nose design reduces drag on float.
- Available for pipe diameters from 2.5" - 30"
- Weather resistant polyethylene (HDPE).
- Replaces rusted & damaged steel pontoon floats.
|
NAUTILUS PIPE AND LINE FLOATS
Nautilus' Pipe and Line floats with patented GripTite™ design consist of two filled, molded polyethylene halves and assembly hardware.
|
|
NAUTILUS PIPE AND LINE FLOAT SPECS
|
| Item # |
Pipe Size
in (mm) |
Outside Diameter
in. (mm) |
Inside Diamenter
in. (mm) |
Overall Length
in. (mm) |
Weight
lb. (kg) |
Recommended
Capacity lb. (kg) |
| 4440300F92602 |
2-3
(50-76.2) |
12" (304.8) |
2.3
(50-76) |
16" (406.4) |
9 (4) |
15 lbs. @ 50% submerged
6.8 KG @ 50% submerged |
| 4440400F92602 |
4-5
(88.9-127) |
16" (406.4) |
3.5-5
(88.9-127) |
24" (609) |
19.25 (8.8) |
50 lbs. @ 50% submerged
22.6 KG @ 50% submerged |
* All dimensions and weights are approximate
* Recommended capacity @ 50% submersion |
Please contact us for a Nautilus™ Pipe Float quote.
|
