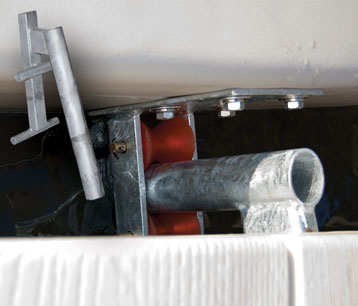

Connect-A-Dock 2000 Series Kit Part #401-2120
![Connect-A-Dock 2000 Series Kit Connect-A-Dock 2000 Series Kit](anchoring/2000Series_bracket.jpg) When connecting to your Connect-A-Dock 2000 Series High Profile dock use this kit. The kit comes with roller brackets and metal pole connector design to hook into float section connector socket. The Roller brackets can mount to side or front mounting points on the jet ski dock. (Kit contains two roller brackets and metal pole connectors.)
|

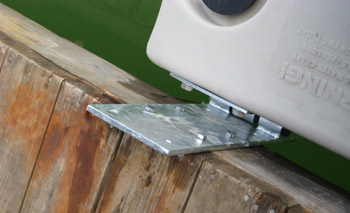

Floating Dock Kit Part #401-2119
![Floating Dock Kit Floating Dock Kit](anchoring/port_hinge_bracket.jpg) When connecting to floating dock with metal or wooden framing floating on tubes a use the Floating Dock Kit that pivots as hinge. The hinge bracket can attach to front or side mounting points on the PWC port. (Kit contains two hinges.)
|

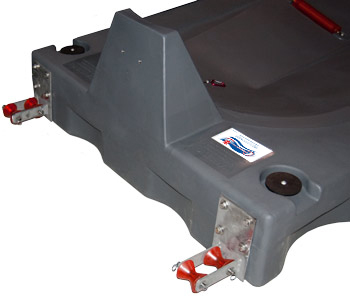

Fixed Dock Kit Part #401-2118
![Fixed Dock Kit Fixed Dock Kit](anchoring/roller_bracket.jpg) When connecting to a fixed dock use the roller brackets to glide on 2" sch 40 pipe (not included) as water levels change. The Roller brackets can mount to front or side mounting points on the PWC port. (Kit contains two roller brackets.)
|

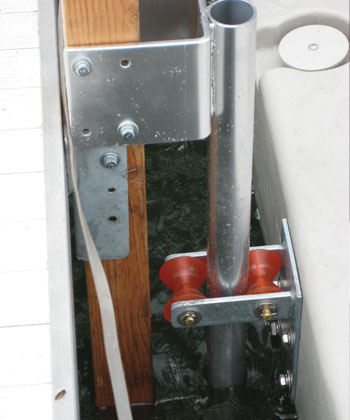

4" x 4" Post Bracket Part #400-2575
![Post Bracket Post Bracket](anchoring/4x4_bracket.jpg) Use the 4" x 4" Post Bracket on fixed docks with Fixed Dock Kit.
|

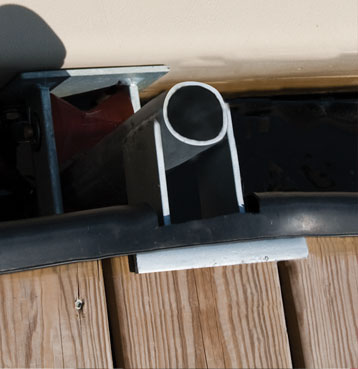

Floating Dock Bracket Part #400-2573
![Floating Dock Bracket Floating Dock Bracket](anchoring/rolfloating-dock_bracket.jpg) Use the Floating Dock Bracket on floating docks with Fixed Dock Kit.
|
