All Ultra-Overpacks Are Independently Certified For:

• LAND United Nations (UN) Transport of Dagerous Goods
• SEA International Maritime Organization (IMO); International Maritime dangerous Goods Code *IMDG) Annex I-Section 8
• AIR International Civil Aviation Organizaion (ICAO); Technical Instructions for the Safe Transport of Dangerous Goods by Air, Part 7, Chapter 4
• AIR International Air Transport Association (IATA); Dangerous Goods Regulations, Section 10.3

Overpack Specifications

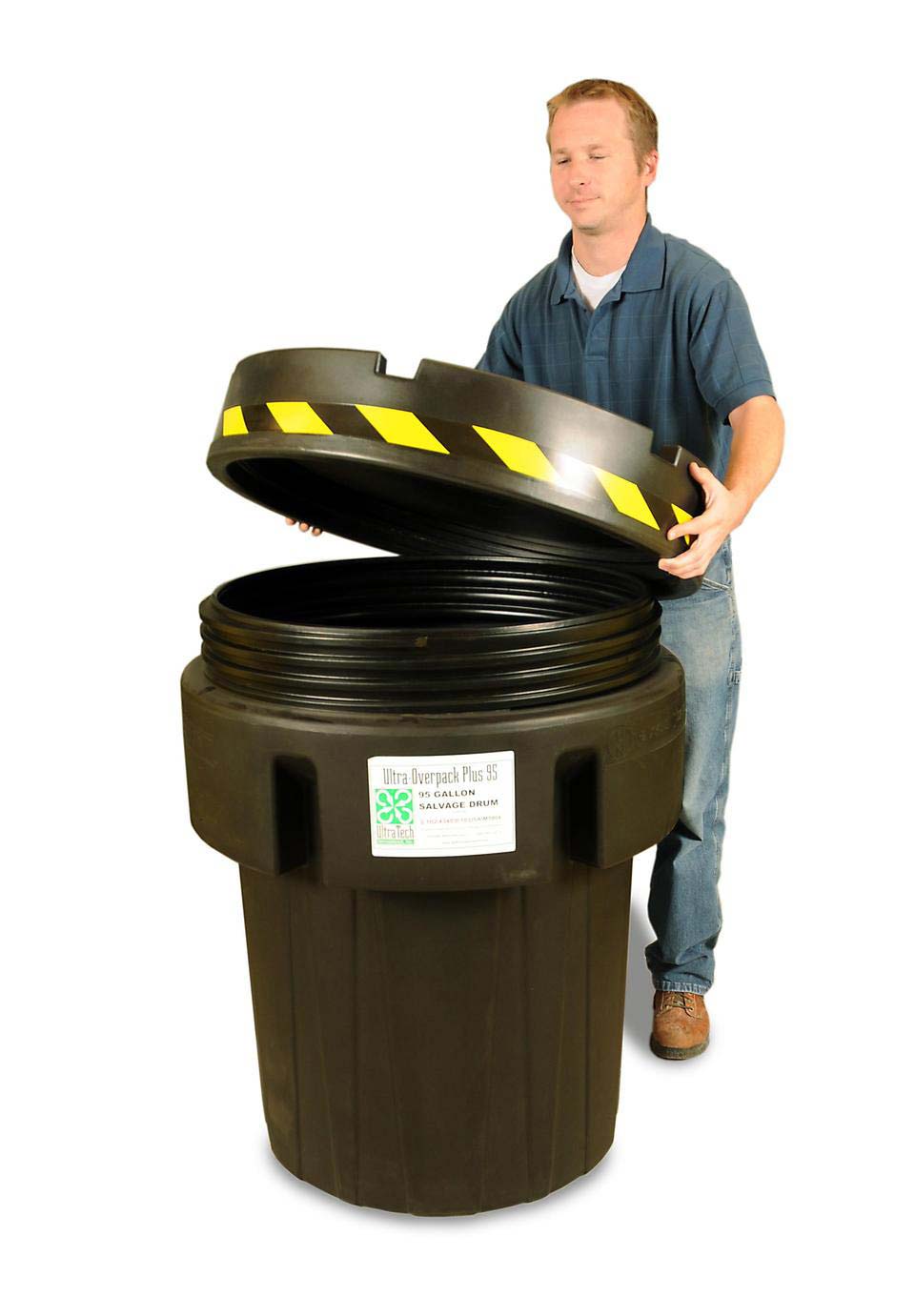

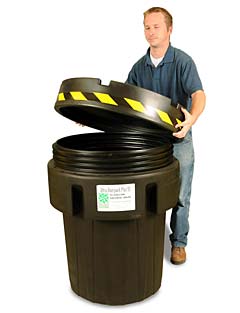

Part# 0580: Overpack Plus 95 Gallon
   - Top Outside Diameter: 30 1/4" (820 mm)
   - Bottom Outside Diameter: 25" (648 mm)
   - Outside Height: 41 1/4" (1049 mm)
   - Weight: 48 lbs. (22 kg)
   - Rated Capacity: 95 Gallons (360 L)
   - UN Marking: 1H2/X345/S/11/USA/M5904

Part# 0582: Overpack Plus 65 Gallon
   - Top Outside Diameter: 29" (737 mm)
   - Bottom Outside Diameter: 21" (533 mm)
   - Outside Height: 36 1/4" (921 mm)
   - Weight: 40 lbs. (18 kg)
   - Rated Capacity: 65 Gallons (247 L)
   - UN Marking: 1H2/X228/S/11/USA/M5904

Part# 0526: 55 Gallon
   - Top Outside Diameter: 24 7/8" (632 mm)
   - Bottom Outside Diameter: 20" (508 mm)
   - Outside Height: 37 1/2" (952 mm)
   - Weight: 24 lbs. (11 kg)
   - Rated Capacity: 55 Gallons (208 L)
   - UN Marking: 1H2/X204/S/10/USA/+AA1201

Part# 0510: 30 Gallon
   - Top Outside Diameter: 21 3/4" (552 mm)
   - Bottom Outside Diameter: 17" (432 mm)
   - Outside Height: 28 1/4" (717 mm)
   - Weight: 17 lbs. (7.5 kg)
   - Rated Capacity: 30 Gallons (113.5 L)
   - UN Marking: 1H2/X136/S/10/USA/+AA0940

Part# 0600: 20 Gallon
   - Top Outside Diameter: 21 3/4" (552 mm)
   - Bottom Outside Diameter: 17" 3/4 (451 mm)
   - Outside Height: 16 3/4" (425 mm)
   - Weight: 16 lbs. (7.25 kg)
   - Rated Capacity: 20 Gallons (76 L)
   - UN Marking: 1H2/X70.8/S/10/USA/+AA1175
