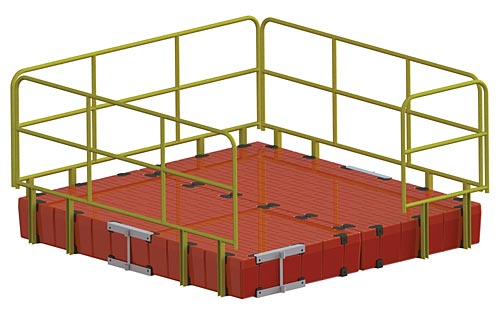

SNAP DOCK FLOATING PLATFORM
 |
Please contact us for a Snap Dock Floating Platform quote.
Easy Installation - The modular walkways are designed so that one person can install them with the use of a forklift and a wrench or an impact gun.
Stackable - Sections stack on top of one
another for reduced storage footprint and shipping costs.
Modular - The above surface float is designed to add or subtract buoyancy modules based on your specific project requirements. This allows you to have a customized solution at a cost effective pricepoint.
Other Great Features:
- Tough, crack resistant, UV inhibiting polymer resin ensures a long life
- Optional handrails and grating for a safe walking surface in ice
- Slip resistant surface
- Anchor points
- Optional dock cleats to tie up a boat
- 20 stainless connection points molded into the float surface
Tech Specs:
- Buoyancy (per platform, 2 modules): 5,832lbs / 2,645kg at full submersion
- Weight: 516lbs / 235kg without handrails
- Dimensions: 120" x 120" x 15" per platform
- Available Colors: Tan or orange are standard; custom colors by request
Click here for product brochure.
Click here for assembly instructions.
Click here for handrail assembly instructions.
|
Please contact us for a Snap Dock Floating Platform quote.
|
|
|
